THIS WINCH IS A SPECIAL ORDER SO PLEASE CONTACT US TO ARRANGE

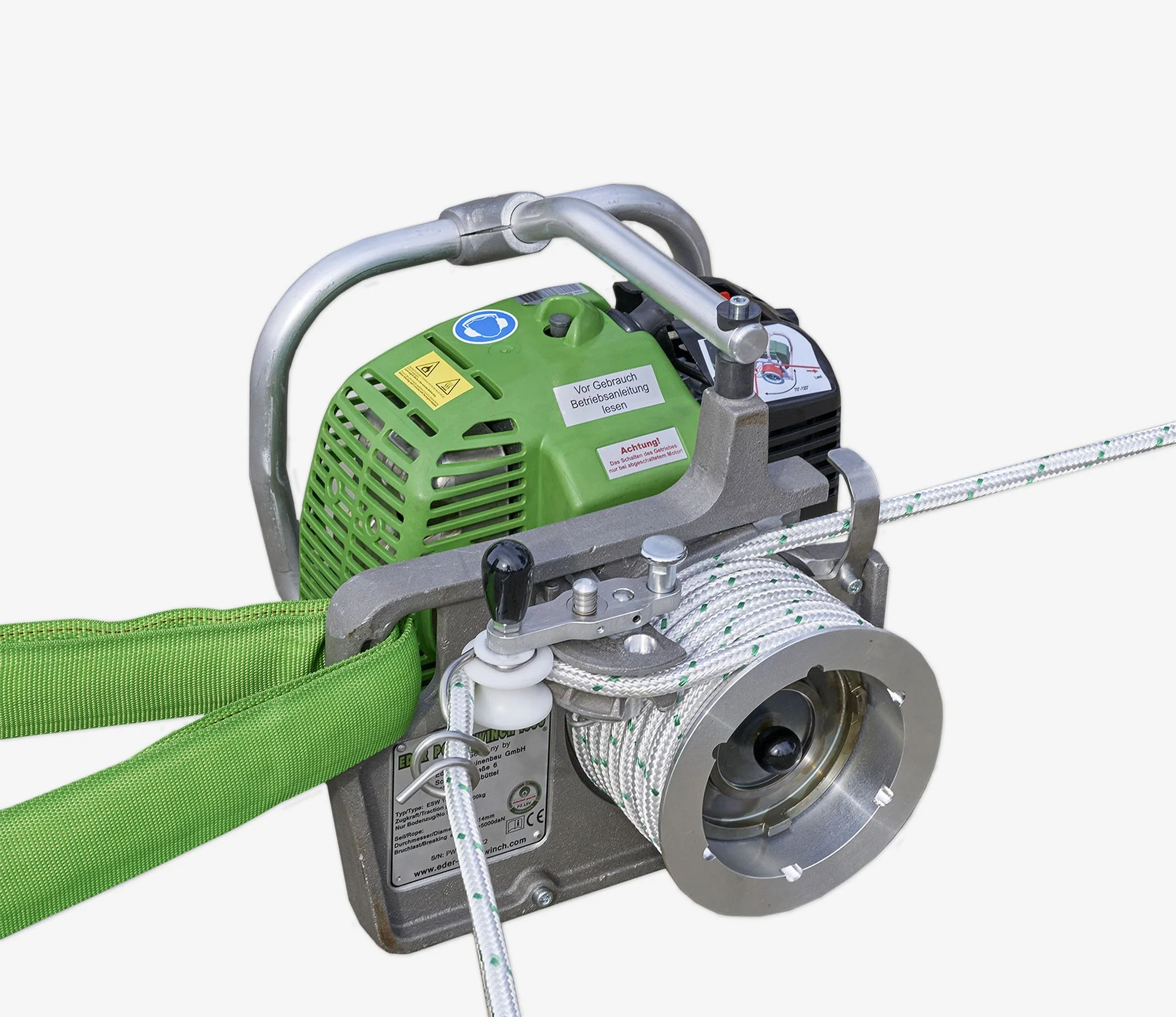

The EDER – WINCH 1800 impresses with its lightness and great power. It pulls 125 times its own weight and can work in any position.

Power

• 1,800 kg traction force without pulley

• 3,600 kg traction force with pulley

Gear shift

The gear shift allows the force/speed ratio to be adapted to the respective situation.
1st gear: 1800 kg tractive force at 12 m/min
2nd gear: 900 kg tractive force at 24 m/min

Operation

The EDER – WINCH 1800 is controlled outside the danger zone. By pulling lightly on the rope, the throttle trigger of the control unit is moved and the winch starts to pull.

Rope brake

Maximum safety thanks to the rope brake! As soon as the operator releases the rope, the winch stops and the rope is clamped in the brake. This prevents the load from slipping back unintentionally. The brake can, however, be released on purpose.
